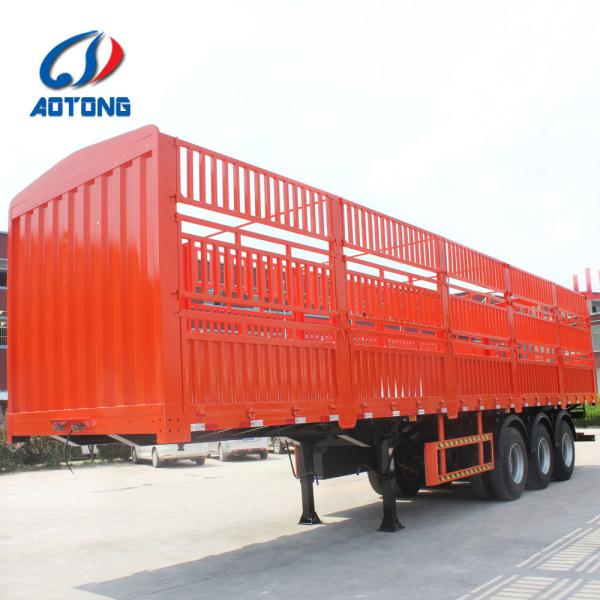

Tri Axles 60ton Store House Bar Fence Type Semi-Trailer for Truck Trailer Transportation

Name: Tri Axles 60ton Store House Bar Fence Type SemiTrailer for Truck Trailer Transportation
Brand: AOTONG
Price: 13 USD

China Tri Axles 60ton Store House Bar Fence Type Semi-Trailer for Truck Trailer Transportation wholesale

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 13000X2500X3400 (mm)

Max Payload : 60ton

Place of Origin : CHINA

Brand Name : AOTONG

Axle : FUWA Brand

Tire : Triangle Brand

Suspension : Leaf Spring Suspension

Landing Gear : Jost Dual-speed Landing Gear

Product name : Fence Truck Trailer

King pin : 2"(50mm)or3.5"(90mm) JOST

Brake System : KTL Valve WABCO Optional

Leaf Spring : 10/10/10

Tare Weight : 7500kgs

Certification : ISO,CCC

Packaging Details : N/M

Port : Qingdao/Tianjin,China

Supply Ability : 150 Unit/Units per Month Fence Truck Trailer

Price : $13,500.00/units 1-2 units

MOQ : 1 UNIT

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

Tri Axles 60ton Store House Bar Fence Type Semi-Trailer for Truck Trailer Transportation

Product	Fence semi trailer
Outside Dimensions (LWH)	(6000-11000)25003550mm
Rated Load	45000 kg
Tare Weight	8000 kg
Twist lock No.	12
Tires	Specification			12R22.5-18
		No. of tires			8/12/16
		Spare tire carriers			1 or 2
Axles	Brand			FUWA (BPW optional)
		No. of axles:			2/3/4
		Axle load			13000kg
Wheel rim	7.50-20 rim or 8.00
Suspension	Leaf spring suspension or Air suspension
Brakes	Brand			WABCO
		Brake chamber			Double air chamber
		System			Dual line braking system /ABS
Front/Rear Overhang	1890mm
Main Beam	Material	I beam ,Q345B, automatic submerged arc welded
Main Beam		Specification	Height is 500mm, upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam Material	Q235B
Side Beam	Channel steel
Plate Form	Steel Sheet 3mm thickness or diamond plate(Also can choose other thi ckness, such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing Gear	28Ton
Accessory	One tooling box with a set of standard trailer tool
Voltage	24V
Receptacle	7 ways (7 wire harness)
Lights	Front corner marker lamp :red ;reflector lamp :white
		Side marker :orange
		Rear lamp :red; rear reflector :white; turn single lamp :orange
Painting ,marking and side guard can according to the customer’s requirement

AOTONG cargo fence trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that cargo fence semi trailer can meet load requirements on different kind of roads and has a long service life.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

Gooseneck 3 axles fence semi trailer

4 axles fence semi trailer

Dry van semi trailer

Animal transport semi trailer

Livestock transport semi trailer

Curtain semi trailer

Interlink sidewall semi trailer

Aluminium side wall semi trailer

Double layer sidewall semi trailer

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.
